These chargers have been designed by Fogstar specifically to work with LiFePO4 batteries, in particular our 105Ah, 230Ah and 300Ah 12V Drift Leisure Batteries.

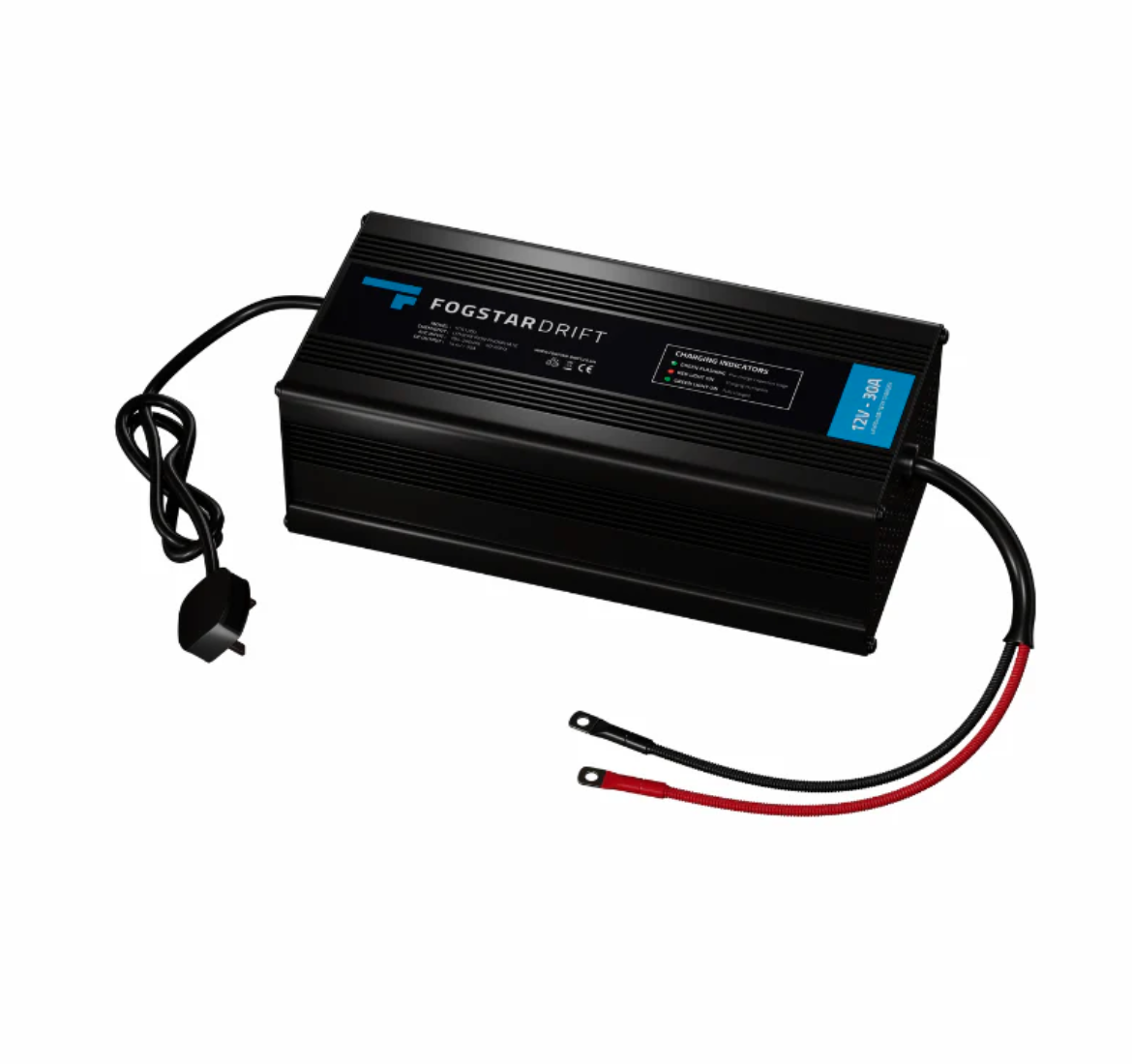

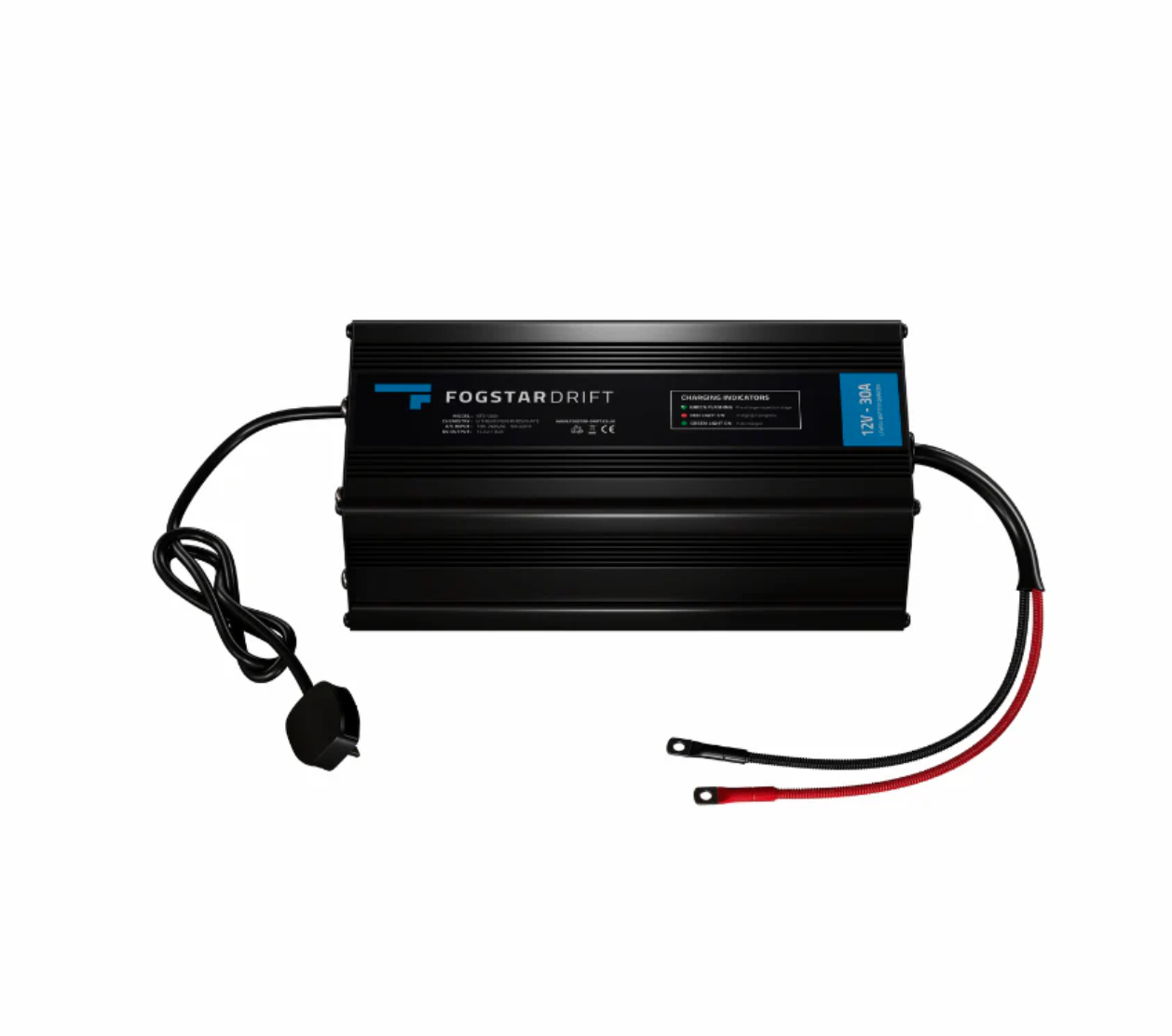

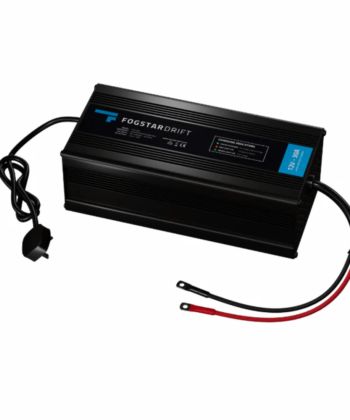

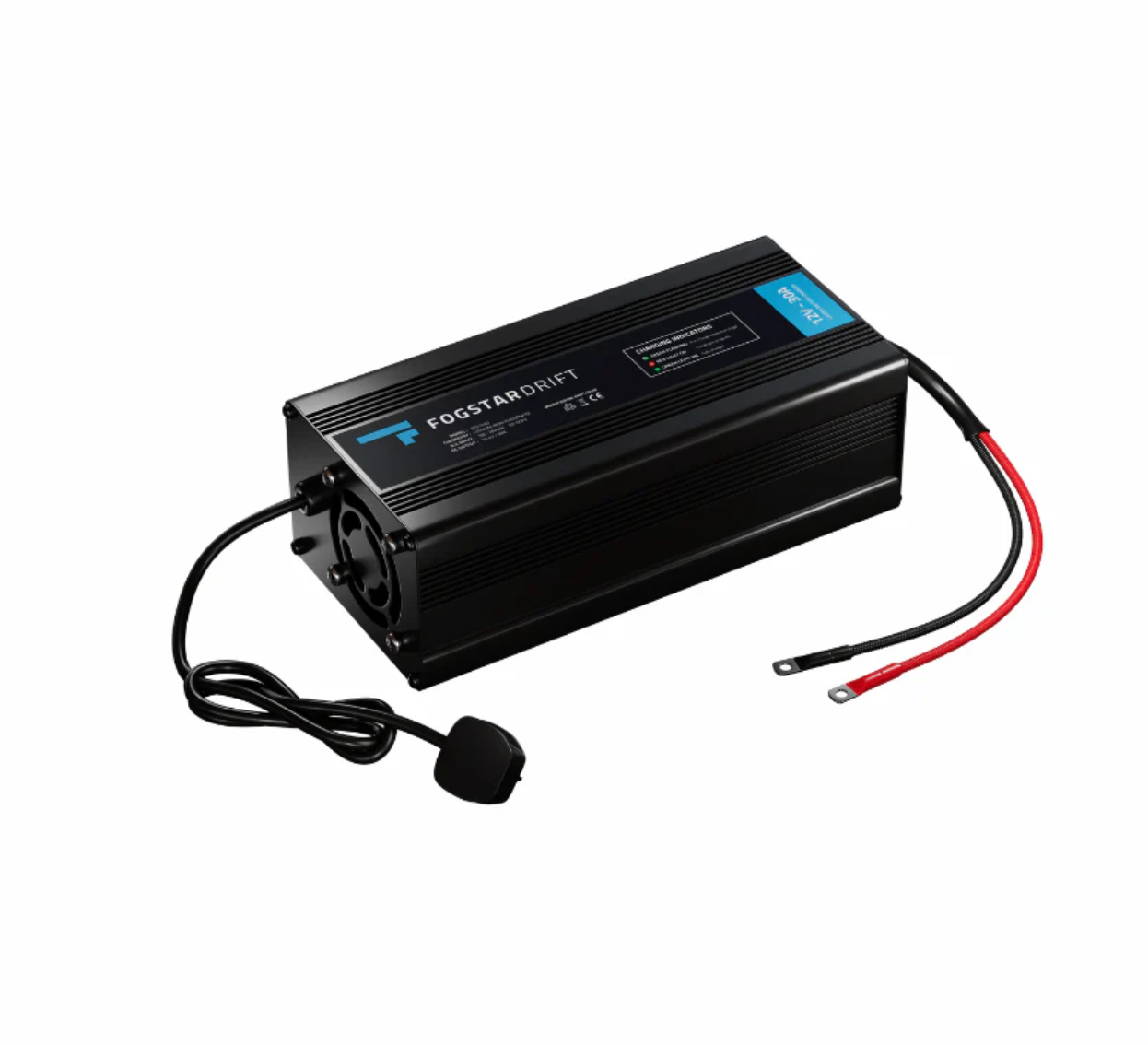

Our user-friendly 12V 30A LiFePO4 charger is packed with extensive protective features, and are of a high seismic grade, ideal for use during off-grid adventures.
PRODUCT SPECIFICATIONS
Working Temperature    -30°c ~ +40°c
Storage Temperature    -40°c ~ +70°c
Relative Humidity      5% ~ 95%
Heat Dissipation Mode  Fan Cooling
Input Voltage          180-260 VAC
Input Frequency        50Hz / 60 Hz
Chemistry              LiFePO4
DC Output            14.2V / 30A
Ring connector size     M10 (will fit M8 using a washer)
HOW TO CONNECT YOUR CHARGER
- Remove your charger from the packaging
- Retain the packagingÂ
- Ensure the charger air vents are not blocked before connecting
- Connect the black (negative -) cable to the black (negative -) terminal on the battery
- Connect the red (positive +) cable to the red (positive +) terminal on the battery
- Ensure terminal rings are tightened
- Plug your battery charger into the mains and switch ON
- Your battery indicator light should be flashing green (pre-charge inspection stage).
HEALTH AND SAFETY
- Do not disassemble the charger
- Do not leave charger on unattended
- Do not remove the charger cover
- Do not block the charger air vent
- Keep away from heat source
- Keep away from water
- Do not crush, incinerate or modify
- Only use within manufacturers specifications.
