LPS II Lithium-Ion Battery Super Charger DC-DC Converter Clayton Power
Plug and go – You´ve got the power!
Multiple functionality Super Charger for the 1 and 2 kWh Li-Ion battery, letting you:
- Charge from any vehicle alternator
- Have a multiple-battery setup
- With automatic voltage regulation

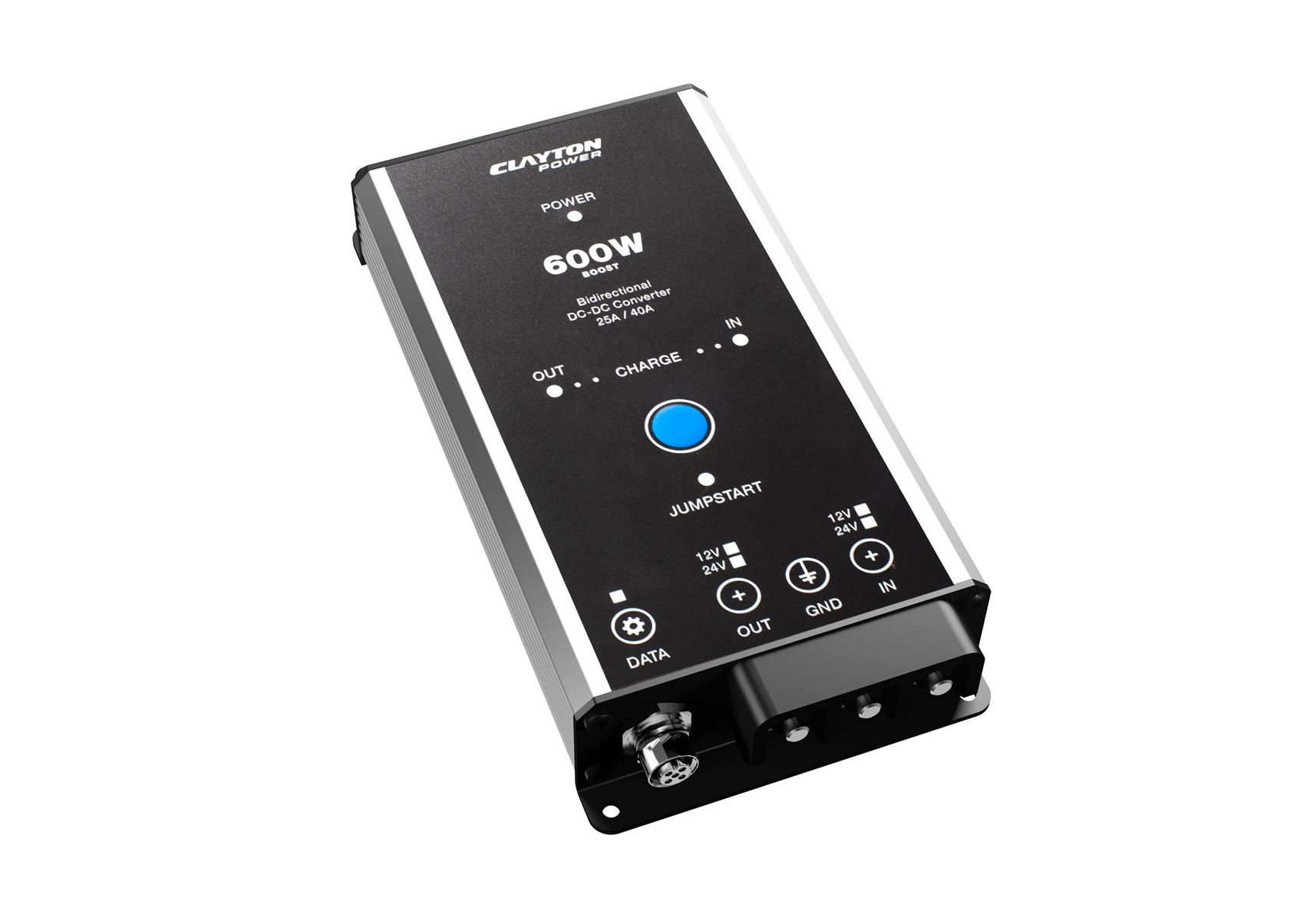

| Model No. | Bidirectional DC-DC Converter 9V-36V 600W / CD1801 |
| Supply Voltage | 10.9V – 32V |
| Input Current | 0-45A |
| Output Voltage | 14.4V or 28.8V |
| Output Current | 0-40A |
| Output Control | 5 stage charge |
| Wakeup Input Range | 0-36V |
| Wakeup Input (Deactivate) | <3.0V |
| Wakeup Input (Activate – Delayed 15sec) | >4.0V |
| Power consumption (Idle) | <1.6 W |
| Power consumption (Sleep) | <1 mW |
| Operating temperature range | -25 to 50 °C |
| Weight | 620 g |
| Dimensions | 222 x 110.5 x 40 mm |
