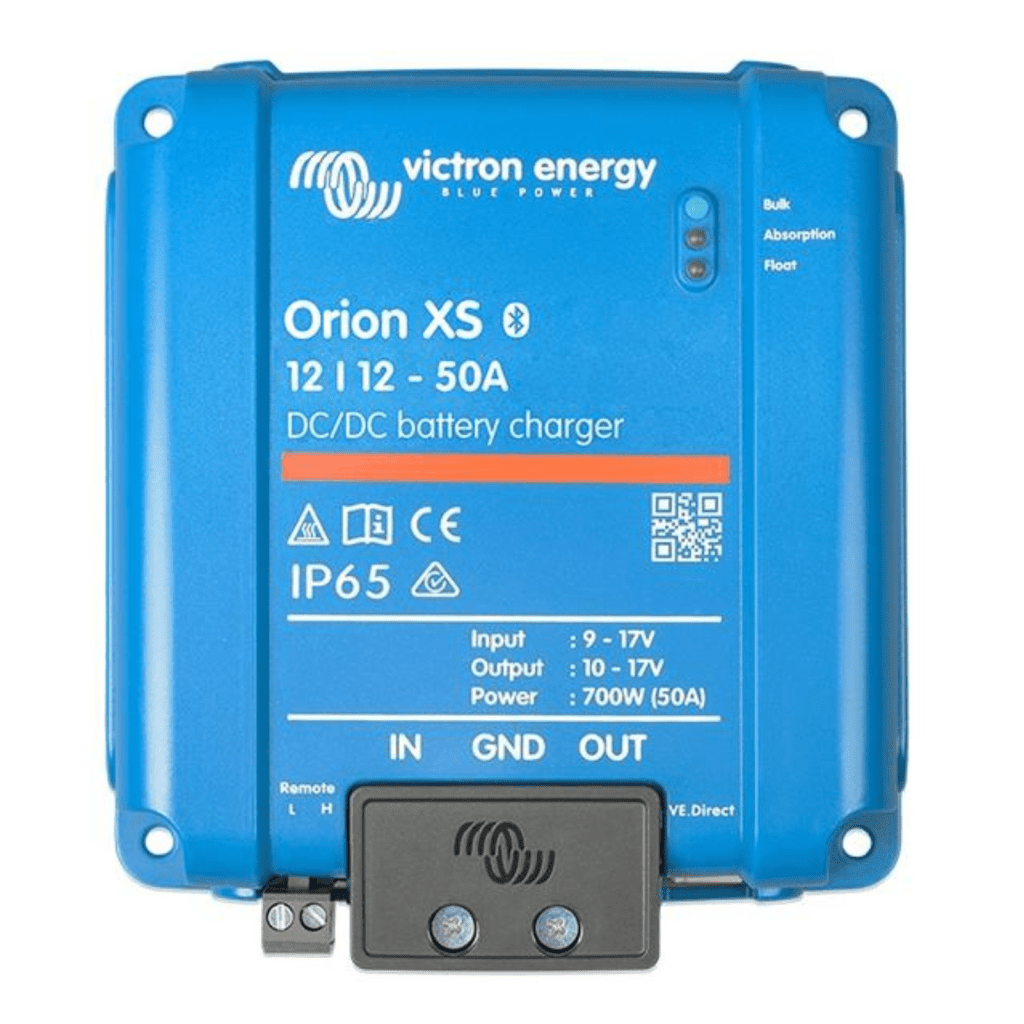

Victron Energy Orion XS 12/12-50A DC-DC Battery Charger (ORI121217040)

Maximise Power and Efficiency with the Victron Energy Orion XS 12/12-50A DC-DC Battery Charger (ORI121217040).

Upgrade your dual battery system with the Victron Orion XS 12/12 50A Non-Isolated DC-DC Battery Charger (ORI121217040), designed to deliver exceptional performance, efficiency, and control. Perfect for off-grid, marine, and campervan applications, this DC-DC charger ensures optimal power management and battery health while maintaining system safety.

Key Benefits of the Victron Orion XS 12/12-50A DC-DC Battery Charger:

• Intelligent Power Management:
  Fully configurable input and output currents allow for tailored charging to meet your specific needs. The built-in engine shutdown detection prevents unnecessary power draw, while the advanced aluminum PCB cooling system ensures 98% efficiency without the use of noisy fans.
• Unmatched Control and Monitoring:
  Seamlessly integrate the Victron Orion XS into your Victron system for remote monitoring and control via the VictronConnect App or other compatible devices (sold separately). Gain complete control over your charging system from anywhere.
• Smart Alternator Compatibility:
  Designed for modern vehicles, the Orion XS works flawlessly with smart alternators found in Euro 5 and Euro 6 engines, ensuring the proper charging current is retrieved to maintain battery health.
• Adaptive Charging Algorithms:
  The Orion XS features customisable charging algorithms with eight pre-programmed battery settings, ensuring the optimal charge for various battery types, including lead-acid and lithium batteries, whether they experience shallow or deep discharges.
• Comprehensive Protection:
  Safeguard your batteries and system with built-in protection against overloads, short circuits, and excessive temperatures. The Orion XS also features low-temperature shutdown and user-configurable under-voltage protection to prevent lithium battery damage and starter battery drain.
• Durable and Reliable Design:
  Built to withstand harsh environments, the Orion XS boasts an IP65 rating, making it dust-proof and water-resistant for reliable operation in demanding off-road, marine, and mobile settings.

Why Choose the Victron Orion XS 12/12-50A DC-DC Battery Charger?

The Victron Orion XS 12/12-50A DC-DC Battery Charger is the ideal choice for those seeking a powerful and efficient solution to manage dual battery systems. Whether you’re upgrading your off-grid power setup, optimising marine systems, or enhancing your campervan’s energy needs, the Orion XS offers superior performance, long-lasting battery health, and robust protection.

Technical specifications for the Victron Orion XS 12/12 50A Non-Isolated DC-DC Battery Charger (ORI121217040):

• Model: ORI121217040
• Input Voltage Range: 10-17V DC
• Output Voltage Range: Adjustable (10-15V DC)
• Nominal Output Voltage: 12V DC
• Output Current (Continuous): 50A
• Efficiency: Up to 98%
• Smart Alternator Compatible: Yes (suitable for Euro 5 and Euro 6 engines)
• Input Protection: Reverse polarity, over-voltage, under-voltage, and temperature protection
• Output Protection: Overload, short circuit, and over-temperature protection
• No-Load Current: < 15mA
• Battery Compatibility: Lead-acid (AGM, Gel), Lithium-ion (LiFePO4)
• Operating Temperature Range: -20°C to +55°C (-4°F to 131°F) (full rated output up to 40°C)
• Cooling: Passive cooling (aluminium PCB, no fan)
• Ingress Protection Rating: IP43 (with cables connected vertically), IP22 (with cables connected horizontally)
• Dimensions (H x W x D): 137mm x 40mm x 123mm (5 x 14.5 x 13 inches)
• Weight: 0.437Kg
• Remote On/Off: Yes
• Mounting: Vertical or horizontal mounting options
• Warranty: 5 years

Comprehensive Guidance and Installation for the Victron Orion 12/12 50A DC-DC Battery Charger

The Victron Orion XS 12/12 50A DC-DC Battery Charger is an advanced and highly efficient charger designed to optimise power management in a variety of applications. Whether you are installing this unit in an off-grid setup, campervan, or marine system, Victron Energy provides detailed resources to ensure smooth installation, configuration, and operation.

For complete guidance on installation and system setup, you can access the Interactive Online Manual. This interactive guide provides step by step instructions. In addition it also contains diagrams, and helpful insights to configure the Orion XS to your specific system needs.

Additionally, for offline reference, download the comprehensive PDF Manual. This document covers everything from technical specifications to troubleshooting tips, ensuring that you have all the information needed to get the most out of your Victron Orion XS.

For a detailed overview of the product’s specifications and performance, you can also access the Orion XS Datasheet. This datasheet provides in-depth information on the product’s capabilities, making it a valuable resource for technical comparisons and system planning.

These manuals and the datasheet will help you ensure proper installation and use of the Orion XS, maximising its performance and longevity in your energy system.
