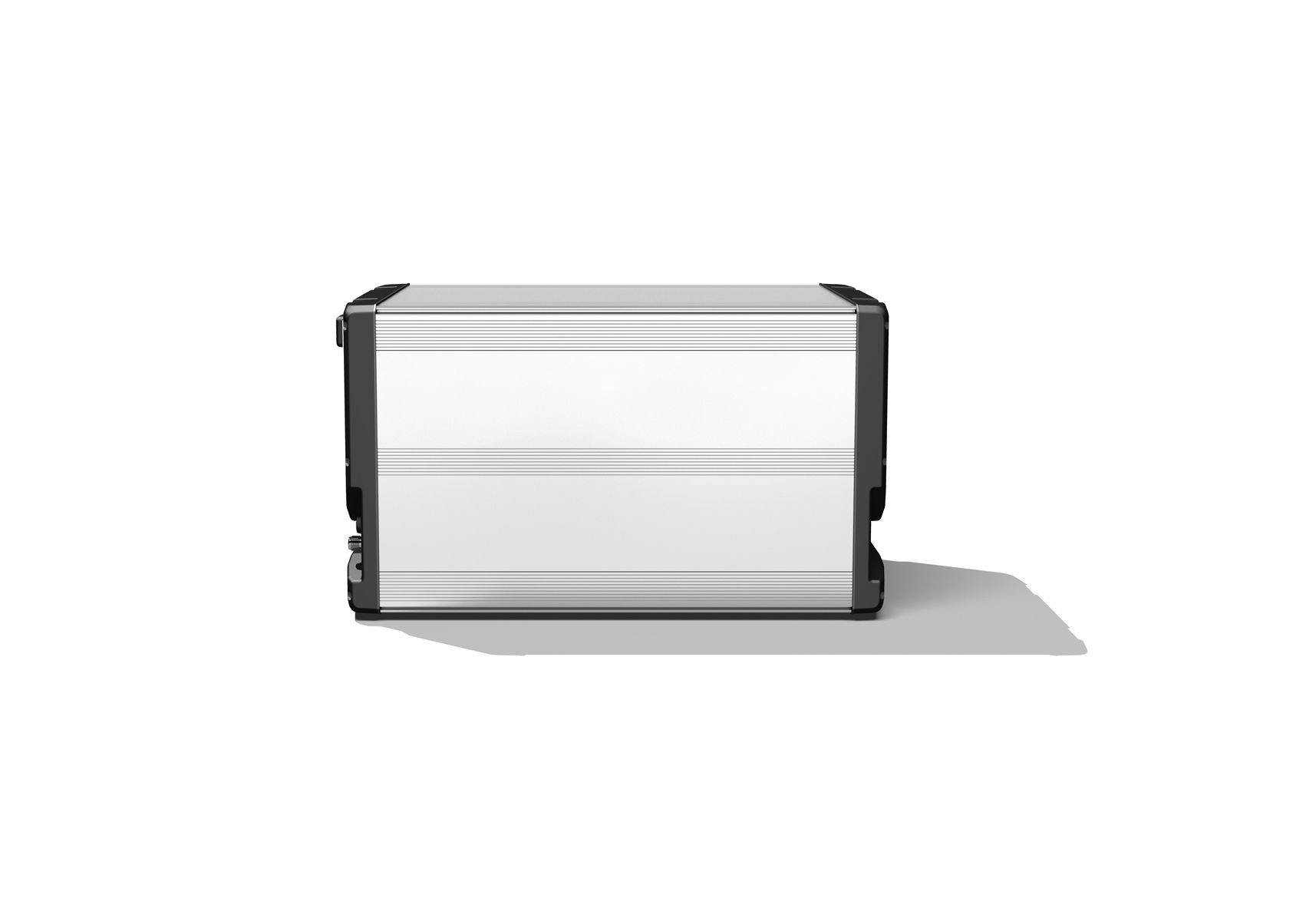

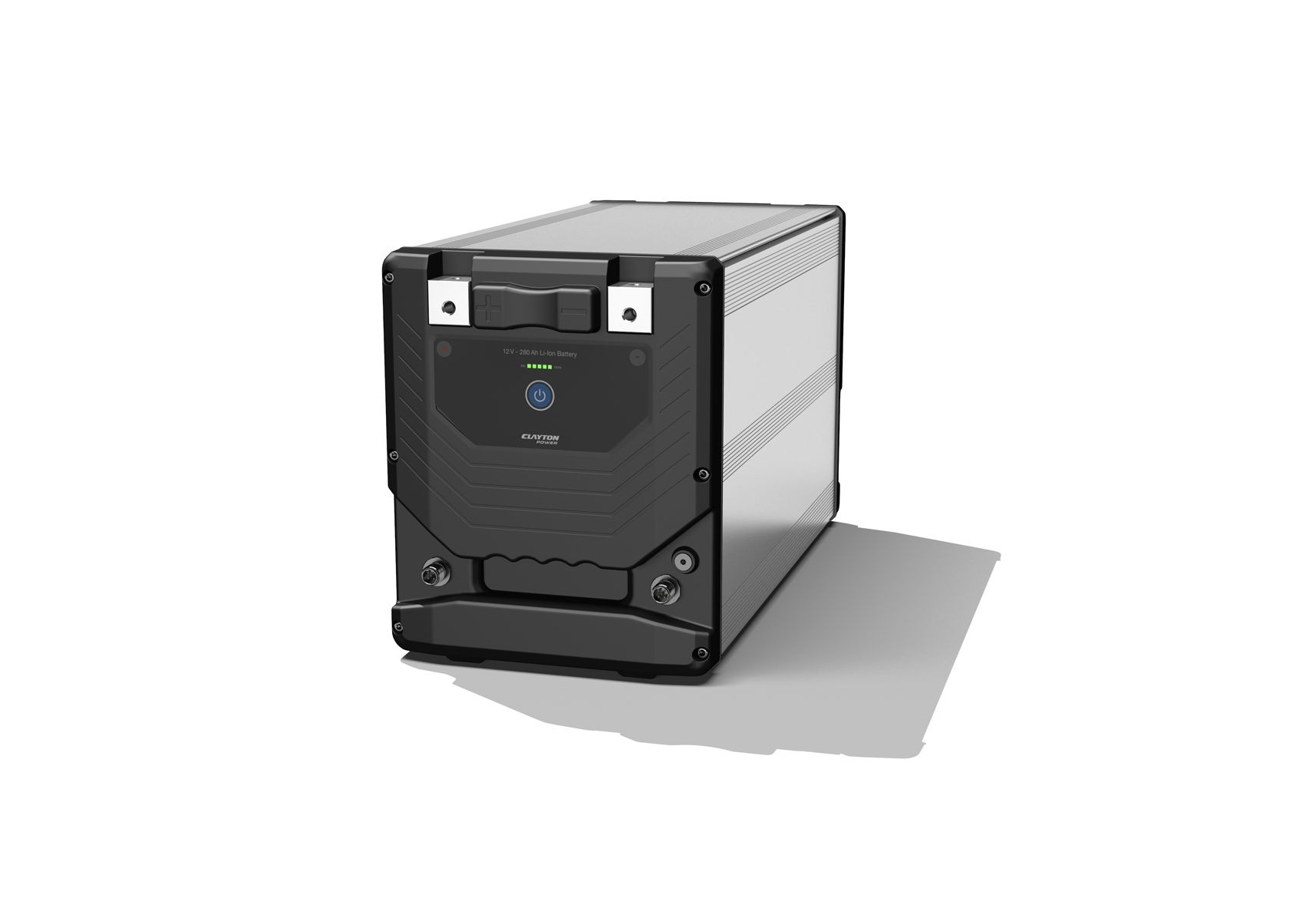

Lithium-Ion G4 Extension Battery Clayton Power 280Ah – 12V
Features:
- Extension for LPS

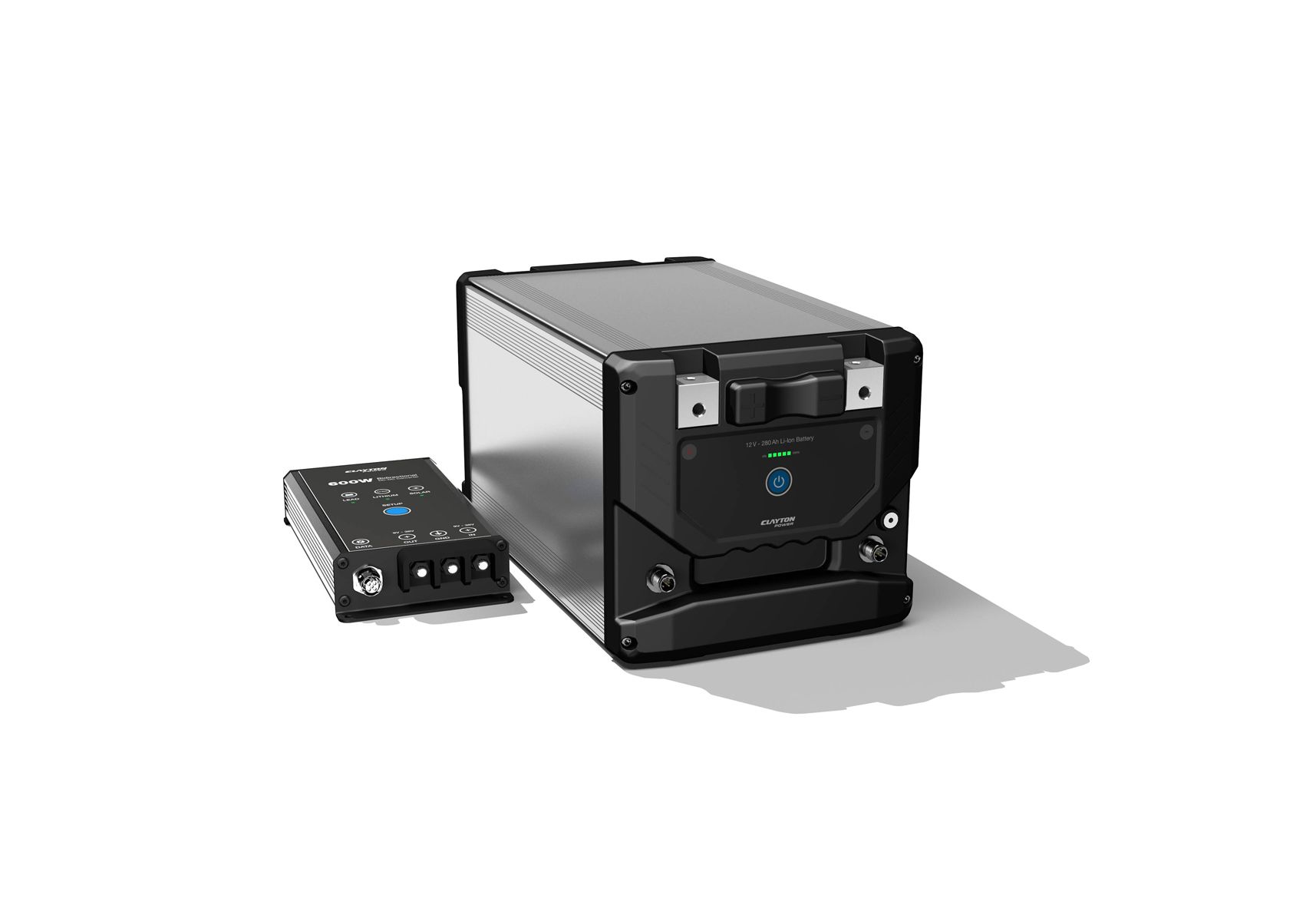

- Including DC-DC Converter
- Including Data Cable
- Including Bracket
- Intergrated BMS
- Intergrated Power Switch
- Serial and Parallel Connection
| Model No. | CB2303-DCDC600 |
| Battery type | LiFePO4 |
| BMS | Intergrated |
| Battery Capacity | 280 Ah (3584 Wh) |
| Effective Capacity | 235 Ah (3008 Wh) |
| Continuous Discharge Current | 200 A |
| Continuous Charging Current | 140 A |
| Cycles | 6000 @ (25 0C, 80% DOD) |
| Nominal Battery Voltage | 12.8 VDC |
| Charging Voltage | 14.4 VDC |
| Discharge Voltage | 10.8 VDC |
| Connection Terminals | M8 screw |
| Weight | 28 kg |
| Dimensions (HxWxL) | 234.4 x 197 x 438.3 (mm) |
